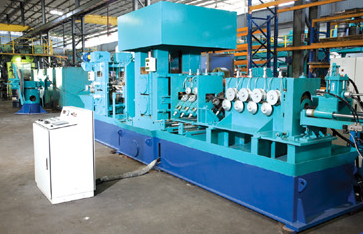

Angle Bar Machine With Medium Frequency Heater
ANGLE BAR MACHINE WITH MEDIUM FREQUENCY HEATER |
||
| a) Machine Model |
ABMF-450
|
ABMF-550
|
| b) Process |

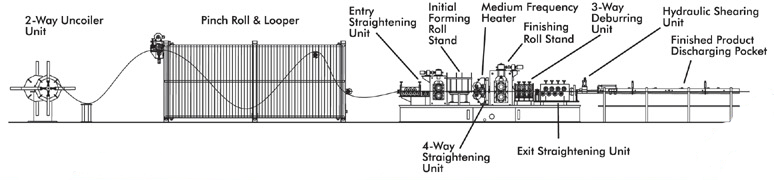

Combination of Hot & Cold Roll Forming
|
Combination of Hot & Cold Roll Forming
|
| c) Raw Material |
SPHT-1, 08KP
|
|
| d) Coil Thickness (mm) |
4.0 (max)
|
6.0 (max)
|
| e) Width of Coil (mm) |
32 ~ 95(max)
|
35 ~ 95(max)
|
| f) Coil I.D. (mm) |
Ø508/Ø610mm
|
Ø508/Ø610mm
|
| g) Coil O.D. (mm) |
Ø1900(max)
|
Ø1900(max)
|
| h) Coil Weight (Ton) |
2 (Max)
|
2 (Max)
|
| i) Angle Bar Size (mm) |
20×20, 25×25, 30×30, 35×35, 40×40, 45×45, 50×50
|
40×40, 45×45, 50×50, 55×55, 60×60, 65×65
|
| j) Heater Capacity (kW/kHZ) |
350 / 6
|
350 / 6
|
| k) Linear Speed (m/min |
40
|
40
|
