Cold Rolling Mill

Category:

Eonmetall Storage Solutions

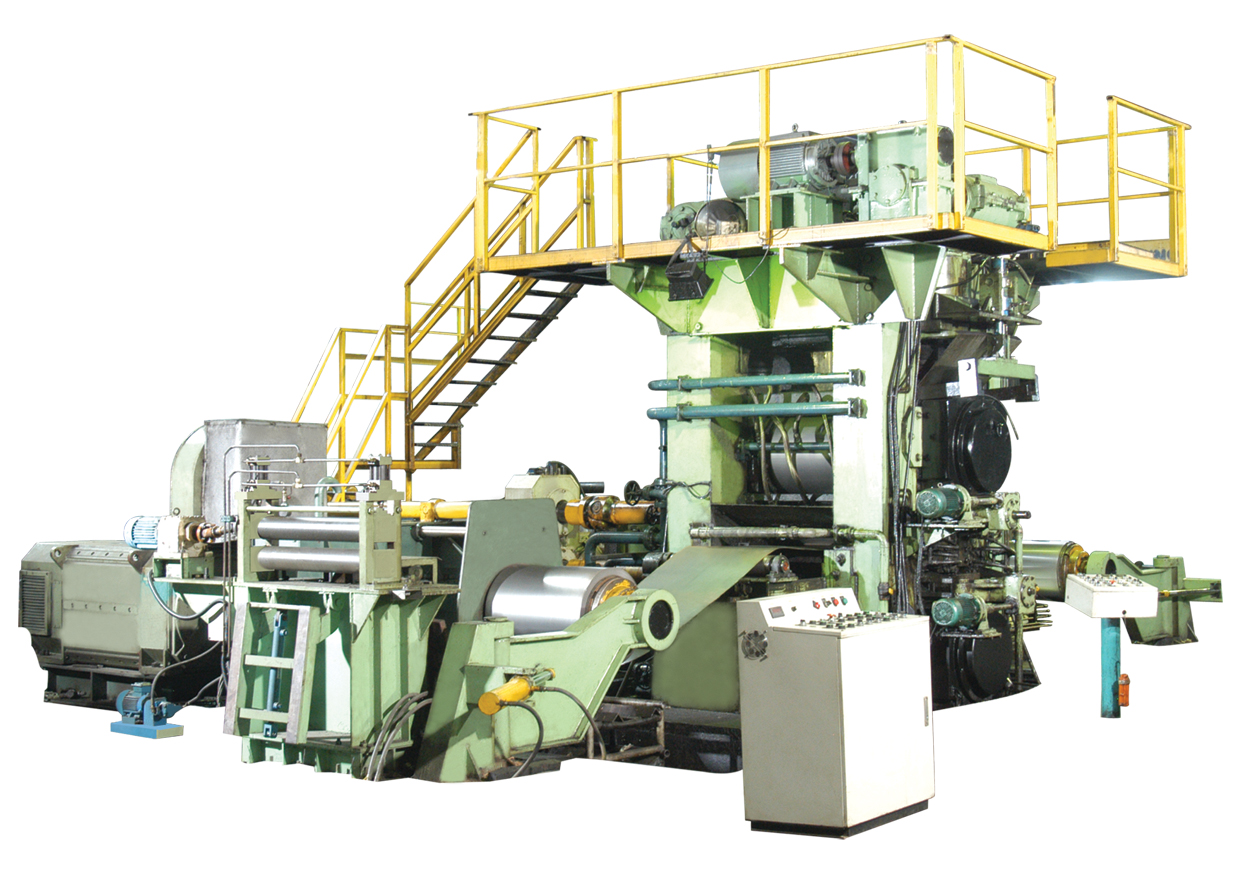

Cold Rolling Mill

Advantages

Low Investment Cost
– Extremely flexible & productive solution for producing high quality & variety gauges of cold roll strip.Low Production Cost

– Continuous R&D of new roller material & quality have tremendously improved the roller wear resistant.Low Inventory Cost

– Allow to stock minimum range of raw material all the time.

High Product Flexibility
– High gauges flexibility achievable through AC drive screw jack control system.

High Operation Versatility
– A very simple machine with user-friendly operation control system.

High Precision Gauge
– Higher finishing gauge accuracy / tolerance achievable through new innovative precision work roll design &profile

COLD ROLLING MILL MACHINE

a) Machine Model
CRM-4H-400
CRM-4H-450
CRM-4HR-450
CRM-4HR-750
CRM-4HR-1250
CRM-6HR-450
b) Mill Type

4-High, Non Reversing

4-High, Non Reversing
4-High, Reversing
4-High, Reversing
4-High, Reversing
6-High, Reversing
c) Raw Material
Hot rolled low carbon steel; 0.05~0.10%C; SAE1008; 08KP
d) Stript Thickness (mm)
≤ 3.0
≤ 3.0
≤ 3.0
≤ 3.0
≤ 1.6 ~ 4.0
≤ 2.0
e) Stript width (mm)
≤ 250
≤ 320
≤ 320
≤ 650
≤ 650 ~ 1250
≤ 320
f) Coil Weight (Ton)
4.0
4.0
4.0
6.0
15
4.0
g) Finishing Stript Thickness (mm)
≥ 0.5
≥ 0.5
≥ 0.5
≥ 0.5
≥ 0.16 ~ 0.5
≥ 0.16
h) Line Speed (m/min)
150
150
150
240
0 – 240 – 610
210

COLD ROLLING MILL MACHINE

a) Machine Model
CRM-6HR-800
CRM-4H-400/2R
CRM-4HR-400/3R
b) Mill Type

6-High,Reversing

4-High, Double Tandem, Non Reversing

4-High, Triple Tandem, Non Reversing

c) Raw Material
Hot rolled low carbon steel; 0.05~0.10%C; SAE1008; 08KP
d) Stript Thickness (mm)
≤ 2.0
≤ 3.0
≤ 3.0
e) Stript width (mm)
≤ 760
≤ 250
≤ 250
f) Coil Weight (Ton)
8.4
4.0
4.0
g) Finishing Stript Thickness (mm)
≥ 0.18
≥ 0.5
≥ 0.5
h) Line Speed (m/min)
0-120-300
150
150
