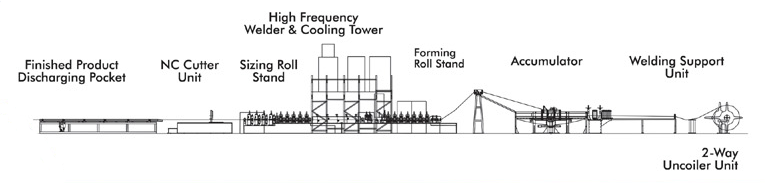

Pipe Line Machine
| MATERIAL TO BE PROCESSED | |||||
|---|---|---|---|---|---|
| a) Raw Material |
Hot Rolled Strip, Steel (SPHT 1-2), ST37-2, SS400
|
||||
| b) Machine Model |
P – 1250
|
P – 1976
|
P – 60100
|
P – 50165
|
P – 60168
|
|
2″ Pipe Line
|
3″ Pipe Line
|
4″ Pipe Line
|
6″ Pipe Line
|
6″ Pipe Line
|
|
| c) Coil Thickness |
0.6 – 2.0mm
|
0.8 – 3.0mm
|
2.0 – 4.0mm
|
2.0 – 6.0mm
|
2.0 – 6.0mm
|
| d) Coil Width |
40 – 160mm
|
60 – 240mm
|
190 – 360mm
|
160 – 520mm
|
190 – 528mm
|
| e) Coil I.D. |
Ø508mm/Ø610mm
|
||||
| MACHINE CAPACITY | |||||
| a) Product Sizes | |||||
| * Round Tube (mm) |
Ø12.7 – 50.8
|
Ø19 – 76.2
|
Ø60.3 – 114.3
|
Ø50.8 – 165
|
Ø60.3 – 168
|
| * Square Tube (mm) |
12 x 12 – 38 x 38
|
15 x 15 – 60 x 60
|
50 x 50 – 90 x 90
|
38 x 38 – 130 x 130
|
50 x 50 – 130 x 130
|
| * Rect. Tube (mm) |
10 x 20 – 25 x 50
|
15 x 30 – 40 x 80
|
30 x 60 – 60 x 120
|
25 x 50 – 80 x 160
|
30 x 60 – 80 x 160
|
| b) Linear Speed (m/min) |
100
|
50 – 90
|
30 – 60
|
20 – 30
|
20 – 30
|
