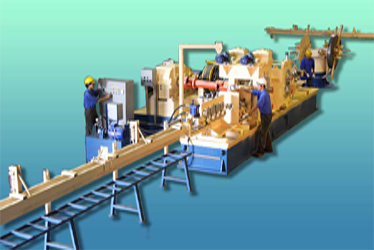

Cold Rolled Angle Bar Machine
COLD ROLL FORMING MACHINE-C-PURLIN |
||||
| a) Machine Model |
C100/150-50-15
|
C150/200-65-15
|
C155-50-15
|
C160/180-60-15
|
| b) Raw Material |
Hot Dipped Galvanized Coil
|
|||
| c) Coil Thickness (mm) |
1.2 ~ 2.5
|
1.2 ~ 2.5
|
1.2 ~2.5
|
1.5 ~ 2.5
|
| d) Coil Width (mm) |
226 ~ 276
|
310 ~ 360
|
280
|
310 ~ 330
|
| e) Coil I.D. (mm) |
Ø508
|
Ø508
|
Ø508
|
Ø508
|
| f) Coil O.D. (mm) |
Ø1500
|
Ø1500
|
Ø1500
|
Ø1500
|
| g) Coil Weight(Ton) |
3.0
|
3.0
|
3.0
|
3.0
|
| h) Rectangular Tube(mm) |
C-100/150x50x15
|
C-150/200x65x15
|
C-150x50x15
|
C-160/180x60x15
|
| i) HF Welder Capacity (kW) |
6.0
|
6.0
|
6.0
|
6.0
|
| j) Line Speed (m/min) |
12
|
7 ~ 10
|
12
|
7 ~ 10
|
COLD ROLL FORMING MACHINE-Z-PURLIN |
|
| a) Machine Model |
Z150/200-65-15
|
| b) Raw Material |
Hot Dipped Galvanized Coil
|
| c) Coil Thickness (mm) |
1.2 ~ 2.5
|
| d) Coil Width (mm) |
310 ~ 360
|
| e) Coil I.D. (mm) |
Ø508
|
| f) Coil O.D. (mm) |
Ø1500
|
| g) Coil Weight(Ton) |
3.0
|
| h) Rectangular Tube(mm) |
Z-150/200x65x15
|
| i) HF Welder Capacity (kW) |
6.0
|
| j) Line Speed (m/min) |
12
|
